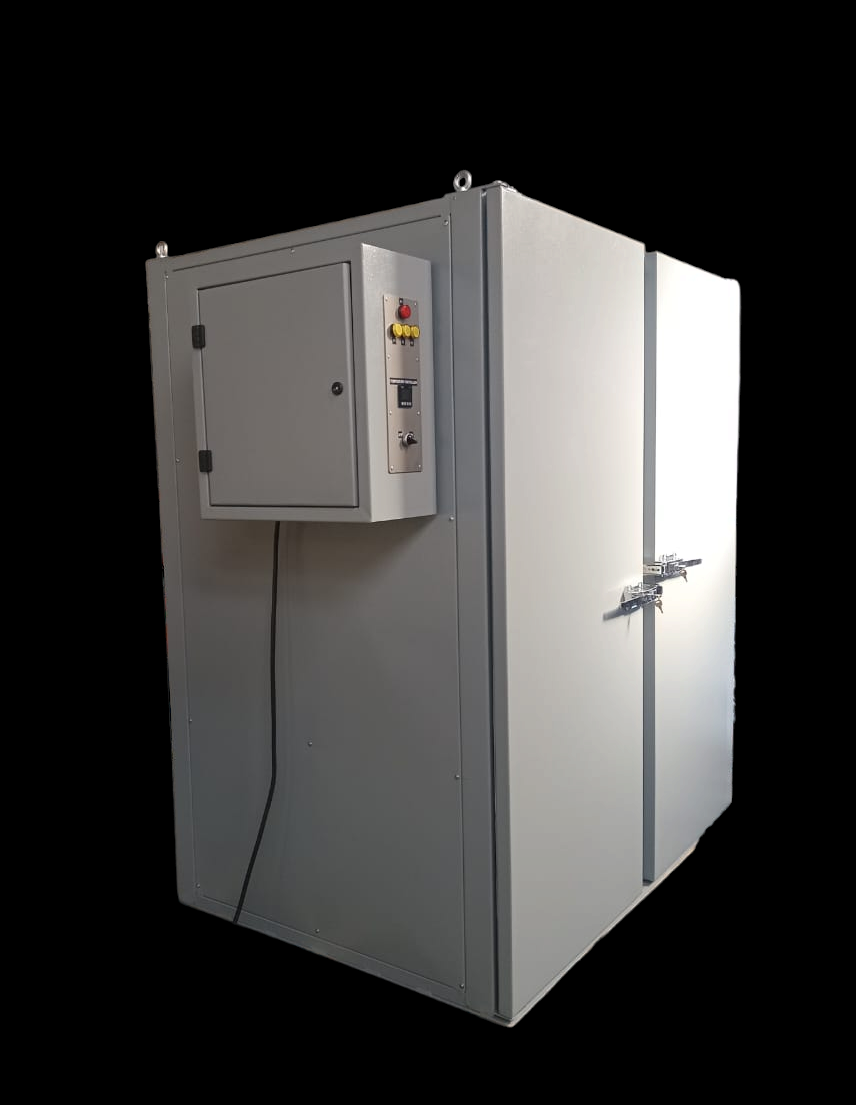

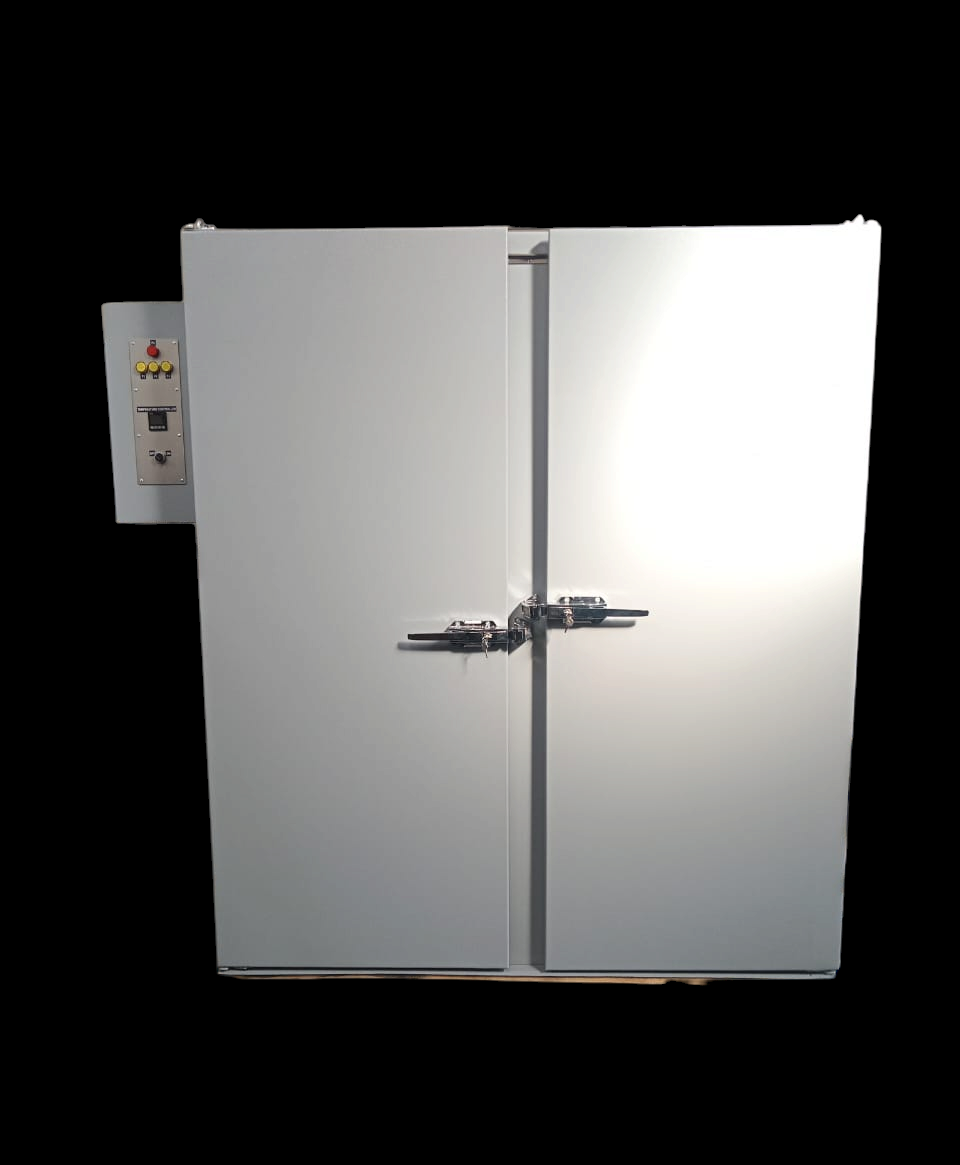

Digital Industrial Oven 2000L
Solidly built and extremely reliable digital ovens that are used for a wide range of drying and curing applications. The ovens operate at ambient +5°C to 250°C, with a control accuracy of around 0.1°C. All ovens come with reliable solid state switching and heavy duty handles. The exterior of the ovens is manufactured from mild steel with a powder coated finish and the interior comprises of stainless steel.
​
Common Applications: Drying, Curing and Powder Coating
MODEL: HW2000D
Specifications:
​
Power: 12 500W
Voltage: 380V/3 Phase
Internal dimensions (mm): 1530 (w) x 1860 (h) x 1050 (d)
External dimensions (mm): 1980 (w) x 1955 (h) x 1190 (d)
Approx. Packaged Weight: 550KG
Capacity: 2000L

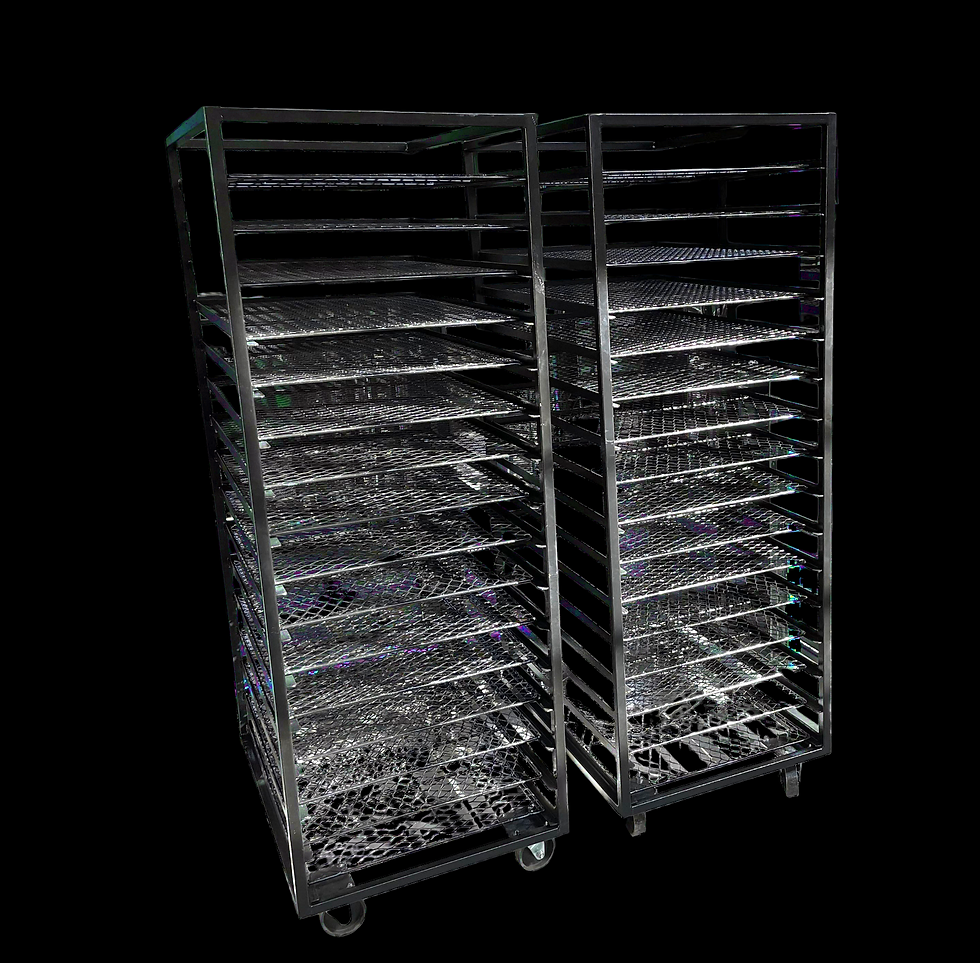

Number of internal trolleys: 2
Number of Shelves: 32 (16 shelves per trolley)
Maximum load per shelf: 30KG
Operating Temperature: Adjustable up to 250°C
​
Features:
​
Digital controller for precise temperature control
High accuracy PT100 temperature sensor
A backup thermostat as well as 25amp safety breaker
Heavy duty handles
The solid-state temperature controller (for optimum reliability) has a digital display
Long lasting silicone door seal
Two adjustable exhaust vents that can be opened/closed depending on application. Open vents to speed up drying time.
Fan assisted circulation
Forklift channels and eyelets to assist with maneuvering the oven
Customised colours upon request
​
* We can also manufacture this unit in a fully stainless steel version as well as a high heat version that can operate at temperatures above 250°C
